Fueldo - Retail Fuel Dispenser
This project was done as a part of my academic course ‘Display and Control’ at NID guided by Nachiketa Charkhwal . The project attempts to redesign the commonly used dispenser machines in India.
In the Indian context these machines are operated by a salesperson rather than the customers themselves.
detailed research ︎︎︎
Accesibility and Screen Visibility
The new Rhomboid shape gives better visibility of the screen and also helps in organising the nozzles (without getting confused with where to put the nozzle back).
It is recommended to place the dispenser on top of an island so that vehicles do not crash into the machine. The current dispensers have control panels placed without taking this into account, making it difficult to access.
Display and Control
Features
Slanted control panel - Ergonomical, donot let daylight to hit on the screen that reduces visibility.
Round and tactile buttons - Gives user feedback (like a calculator) , round reduces mistyping
Colour coded buttons - Yellow for input type ( amount or quantity ), blue for print, red for cancel and green for enter.
User Interface
Dispensing

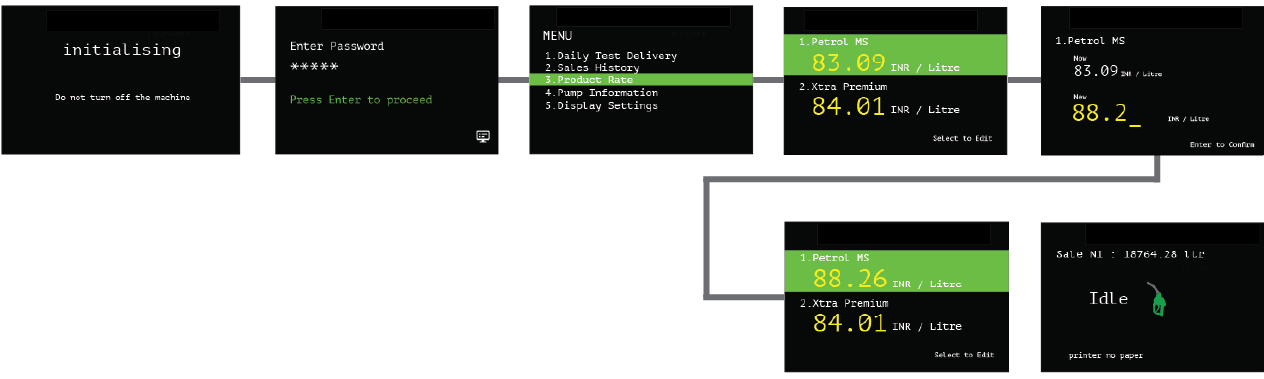

Price Change ( Manual )

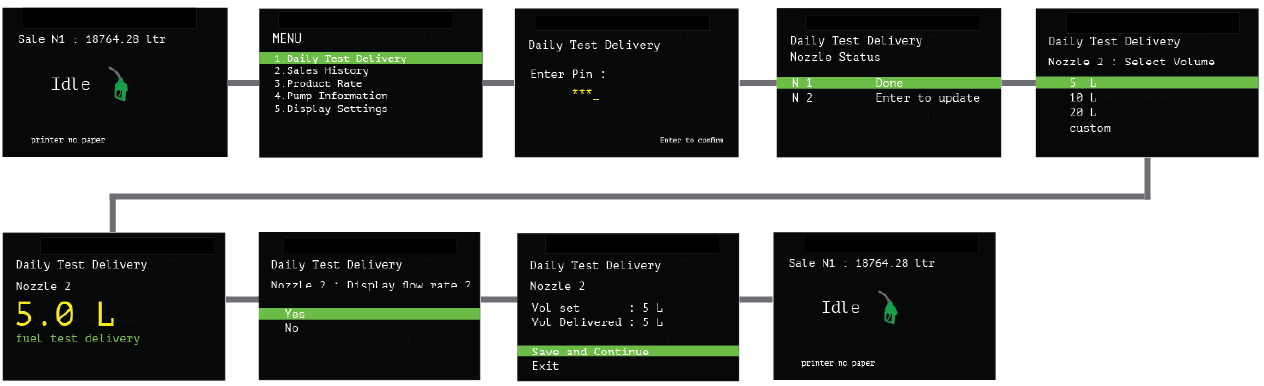

Daily Test Delivery
Test delivery is a daily activity to check
calibration errors. (more in research)
Some Ideation Sketches
